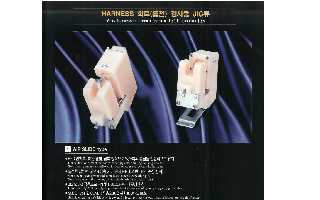

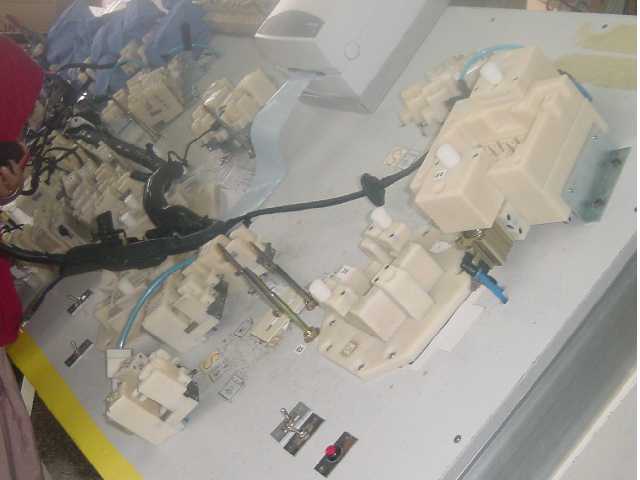

 AIR SLIDE Type



  • Connection & contact method between jigs after putting housing into them.
    So it can maintain the quality of inspection consistency on wire harness.
  • Consistent insert power and contact distance to inspection pin.
    So it can prevent the damage on terminals, which are caused by pins.
  • Good stability & durability of pins and holder component by simple jig-to-jig operation.
  • Simple operation of slide type & cover.
    So it can protect various wires of inspection circuit of tester.

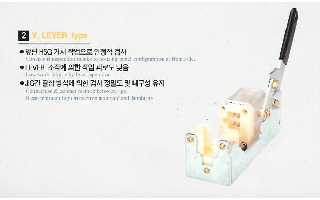

 Y-LEVER Type
  • Consistent inspection thanks to housing panel configuration at front side.
  • Low work fatigue by lever operation.
  • Connection & contact method between jigs.
    So it can maintain high inspection accuracy and durability.

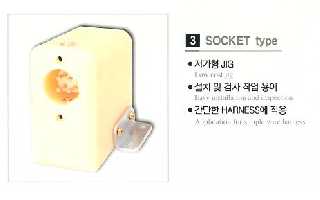

 SOCKET Type
  • Low cost jig
  • Easy installation and inspection
  • Application for simple wire harness

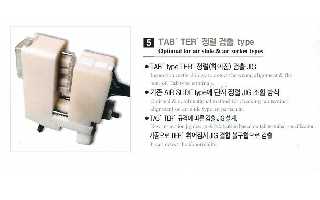

 OPTIONAL (Tab Terminal alignment) for Air slide type checker fixture
  • Inspection methodology to detect the wrong alignment & the bent of Tab type terminals
  • Optional & combinational method for checking tab terminal alignment on air slide type, in particular.
  • New inspection jig design & fabrication based on tab terminal specification
  • It can detect the abnormality.

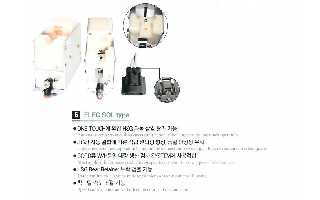

 ELEC-SOL Type
  • Automatic connection & disconnection function of housing part by one touch operation.
  • Convenient and good operation by automatic connection between jigs.  It can maintain consistent quality.
  • Properly applicable for mass production inspection system for cord types of wire harness.
  • Detection function against missing problem of rear retainer of housing.
  • Speed control function for both connection and disconnection.

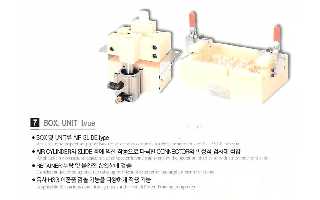

 BOX UNIT Type
  • Air slide type inspection jig  for box (fuse or relay) or unit (air bag) components or Y-Lever type jig.
  • Applicable for consistent inspection of connector having multi-pins by the operation of axes of both air cylinder and slide.
  • Consistent detection against the missing problem of retainer or incomplete insertion status.
  • Applicable for various detection against similar and different housing component

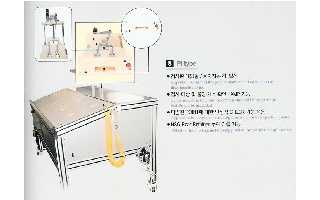

 PI Type
  • Inspection board burial type and automatic air connection & disconnection type.
  • Lamp indication function for components and failure quantity that should be inspected.
  • Applicable for consistent checking function for various inspection points.
  • Detection function against missing problem of real retainer of housing.



 RING TERMINAL Type
  • Air type inspection jig for ring terminal.
  • Automatic disconnection function by air cylinder.
  • Structure for preventing the bending problem of terminal
  • Detection function of inner & outer diameters against terminals having different spec.
  • Detection function against terminals having different feature.

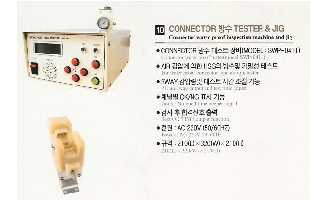

 CONNECTOR WATER PROOF TESTER & JIG
  • Connector water proof tester (model SWP-0411).
  • For testing water proof ability and airtightness of connector by adjusting air pressure.
  • Adjustment function of 3 way air pressures and test time.
  • Audio sound function for identifying OK or NG by channel
  • Output function of pass signal after test
  • Power: AC 220Vac, 50-60Hz
  • Size: 210(L)mm x 320(W) x 210(H)

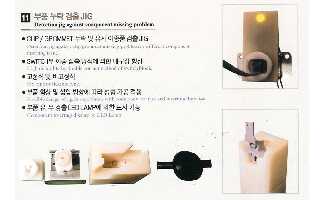

 DETECTION JIG AGAINST COMPONENT MISSING PROBLEM
  • Detection jig against clip/grommet missing problem or different component inserting issue.
  • High durability by double contact method of switch block.
  • Fix type or flexible type.
  • Flexible design of jig in accordance with component feature and inserting direction.
  • Component inserting display by LED lamp.

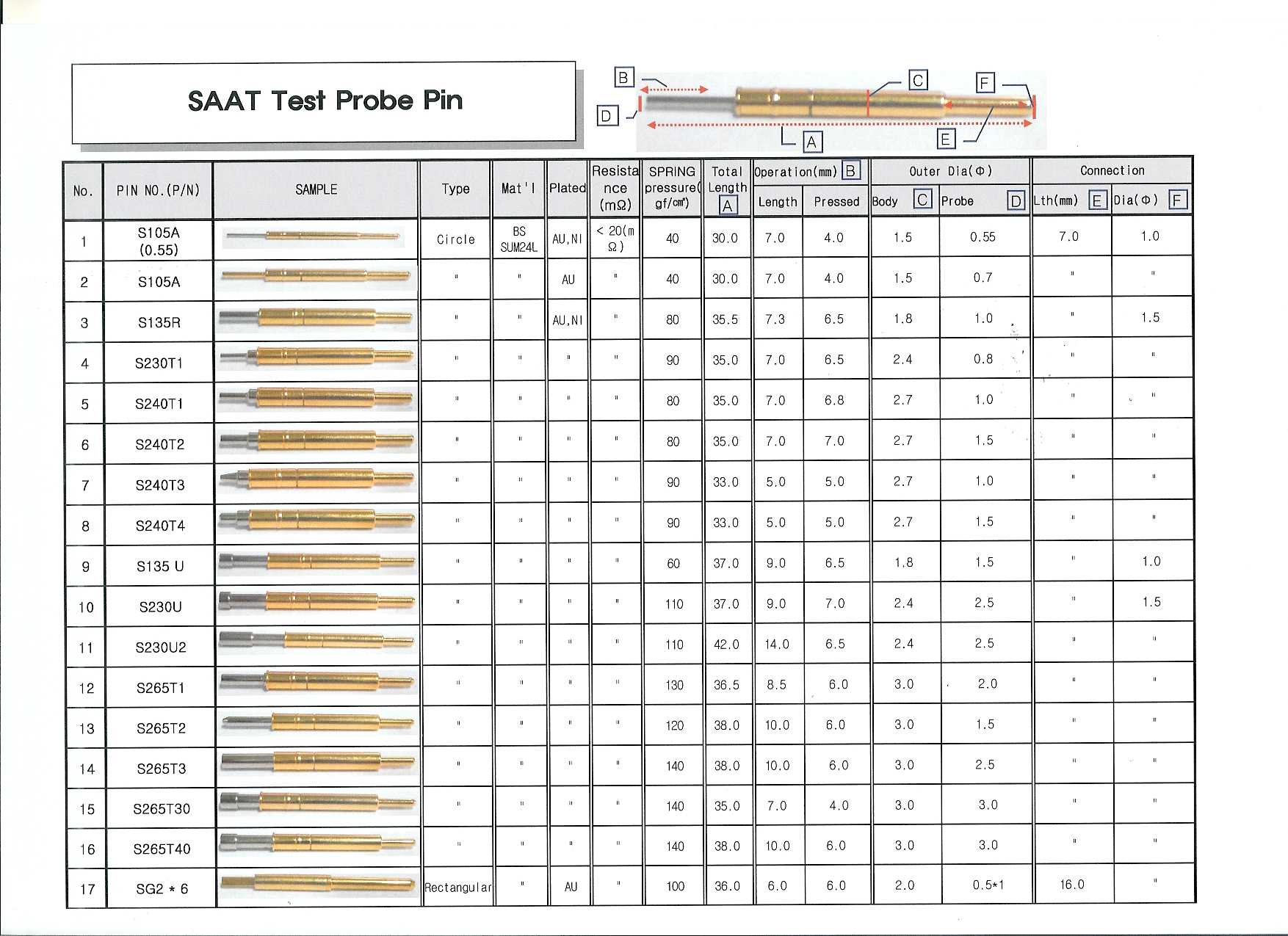

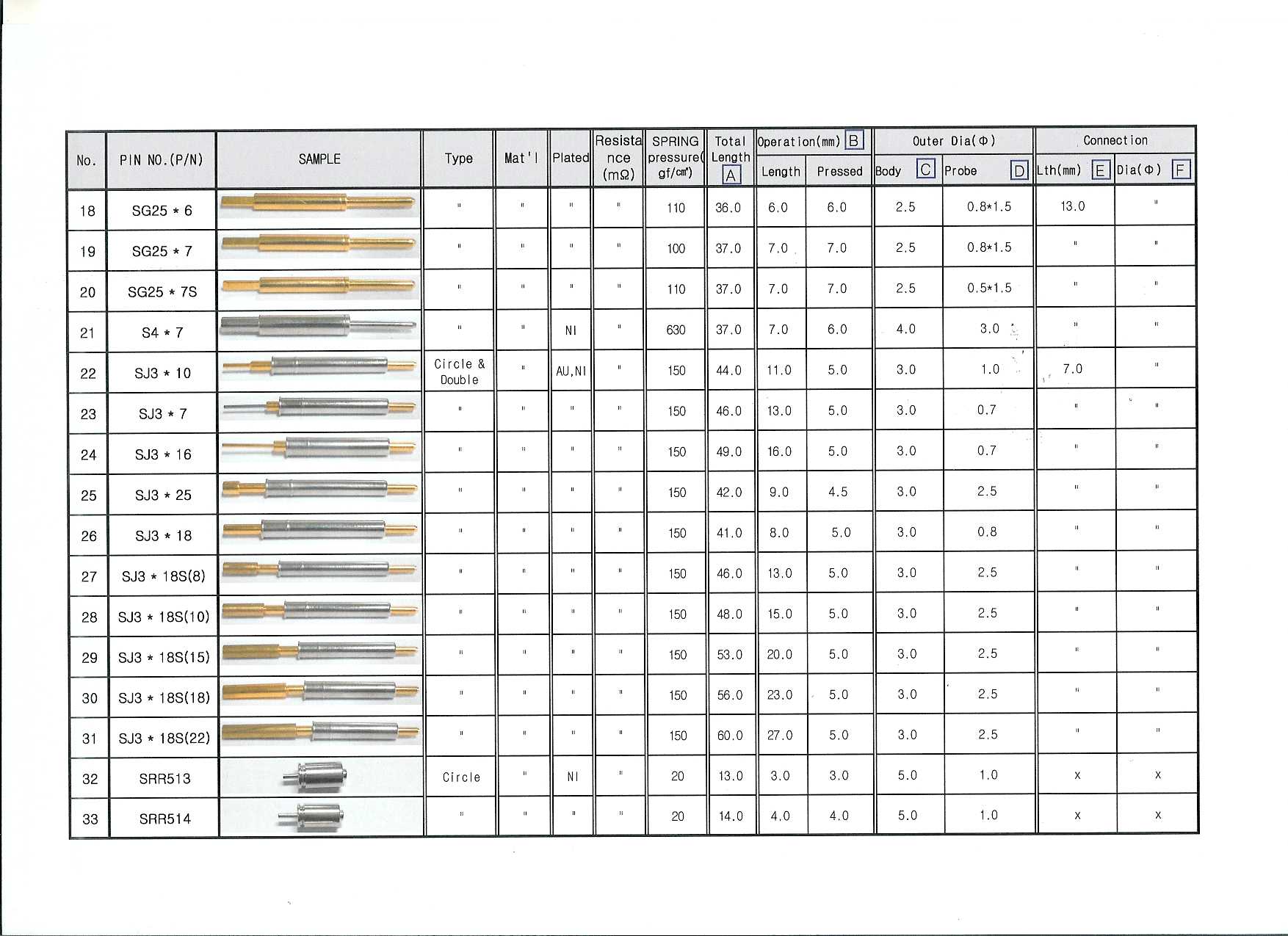

 Test Probe Pin Specification and Status for checker fixture
