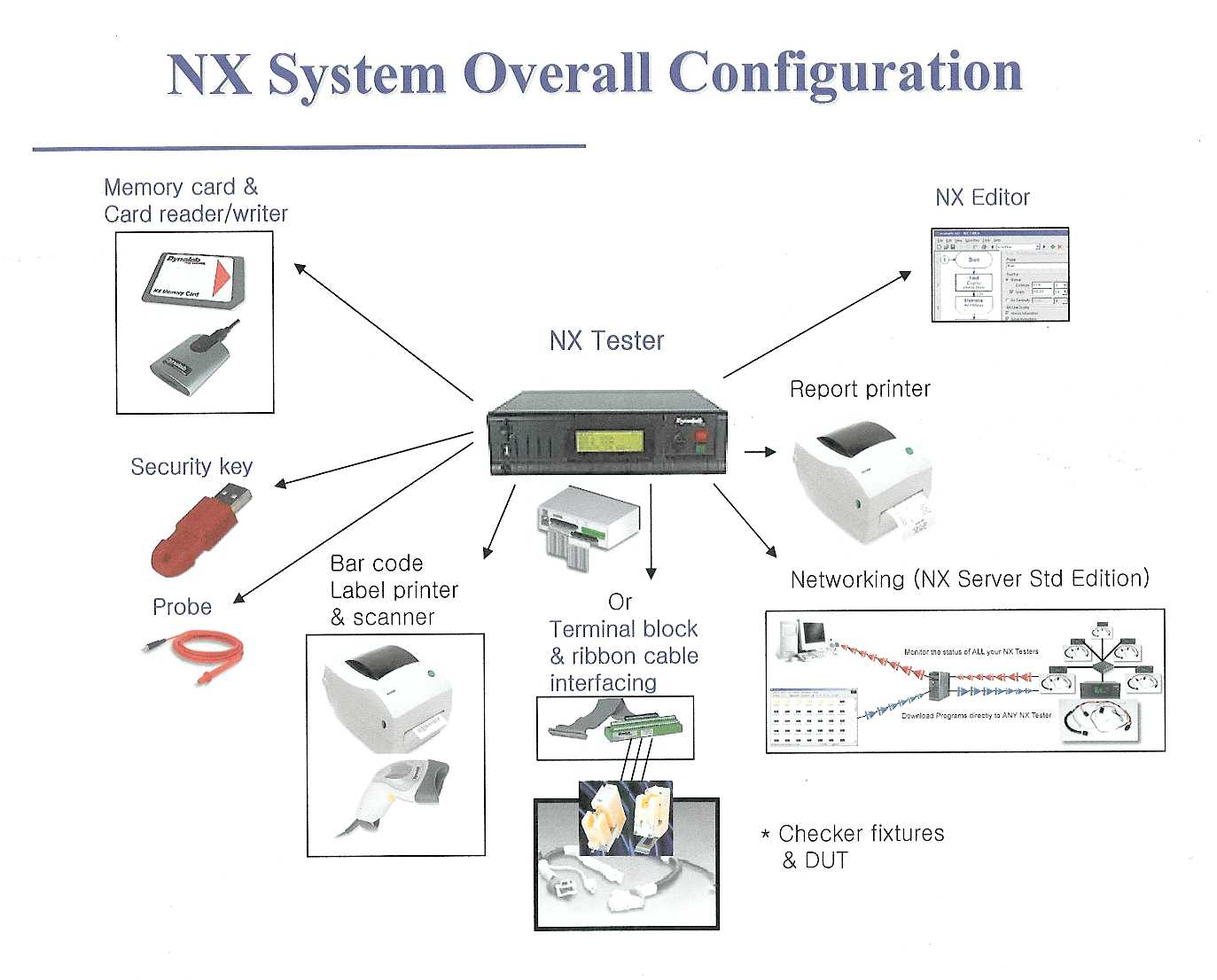

 NX Solo Tester - Dynalab NX Test Systems

  • 80 character, 4 line LCD display
  • Simple 4-button user interface
  • Testing for continuity, shorts, diodes, resistors, capacitors, and others
  • High speed shorts testing
  • Precision resistance measurements
  • Continuous high speed scanning for real time complete status information of harness assembly progress
  • Keyed security access and control
  • Built for rough industrial environments
  • 2 serial ports for connection to printers and scanners
  • Standalone operation
  • Uses a high capacity memory card
  • Specially designed for low point-count application
  •

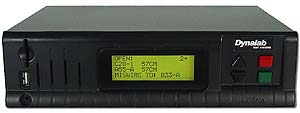

    The Dynalab NX Solo Tester is a low-cost, feature-packed, stand-alone continuity tester designed to accept up to two Test Point Boards giving it a maximum capability of 256 test points. The flexibility of the NX System allows each program to perform multiple tests, display custom messages or sounds, and analyze the results of a test or an input to "decide" which operation to perform next. The NX Solo Tester has 1.3Mb memory capacity for program storage and is compatible with Printers, Scanners, and all other Dynalab NX System accessories.


    P/N 1-128-0 : NX Solo Tester with 128 Test Points
    P/N 1-256-0 : NX Solo Tester with 256 Test Points



     NX Pro Tester - Dynalab NX Test Systems

    • 80 character, 4 line vacuum fluorescent display
    • Simple 4-button user interface
    • Testing for continuity, shorts, diodes, resistors, capacitors, and others.
    • High speed shorts testing
    • Precision resistance measurements
    • Continuous high speed scanning for real time complete status information of harness assembly progress
    • Keyed security access and control
    • Built for rough industrial environments
    • 2 serial ports for connection to printers and scanners
    • Standalone operation
    • Uses a high capacity memory card
    • Tests up to 512 test points



    The Dynalab NX Pro Tester is a low-cost, feature-packed, stand-alone continuity tester designed to accept up to four Test Point Boards giving it a maximum capability of 512 test points. The flexibility of the NX System allows each program to perform multiple tests, display custom messages or sounds, and analyze the results of a test or an input to "decide" which operation to perform next. The NX Pro Tester has 1.3Mb memory capacity for program storage and is compatible with Printers, Scanners, and all other Dynalab NX System accessories.



    P/N 2-128-0 : NX Pro Tester with 128 Test Points
    P/N 2-256-0 : NX Pro Tester with 256 Test Points
    P/N 2-384-0 : NX Pro Tester with 384 Test Points
    P/N 2-512-0 : NX Pro Tester with 512 Test Points


     NX Pro+ Tester - Dynalab NX Test Systems

    • 80 character, 4 line vacuum fluorescent display
    • Simple 4-button user interface
    • Testing for continuity, shorts, diodes, resistors, capacitors
    • High speed shorts testing
    • Precision resistance measurements
    • Continuous high speed scanning for real time complete status information of harness assembly progress
    • Keyed security access and control
    • Built for rough industrial environments
    • 2 serial ports for connection to printers and scanners
    • Standalone operation
    • Uses a high capacity memory card
    • Expandable architecture - tests up to 32,768 test points

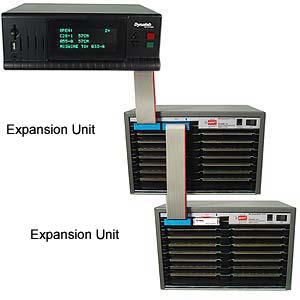

    The Dynalab NX Pro+ Tester is modular and is designed for applications requiring up to 32,768 test points. It has the same "front end" as the NX Pro Tester, but employs a series of Expansion Units to accommodate the test point cards. Each expansion unit is supplied with a 2' and a 6' ribbon cable to connect to the NX Pro Tester - either cable can be used depending on your set up needs; and 1 NX Terminator. Each Expansion Unit can contain up to 8 test point cards for 1024 test points. A maximum of 32 Expansion Units may be connected for 32,768 test points.

    The flexibility of the NX System allows each program to perform multiple tests, display custom messages or sounds, and analyze the results of a test or an input to "decide" which operation to perform next. The NX Pro+ Tester has 1.3Mb memory capacity for program storage and is compatible with Printers, Scanners, and all other Dynalab NX System accessories.



    P/N 3-00640-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-00768-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-00896-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01024-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01152-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01280-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01408-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01536-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01664-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01792-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-01920-0 : NX Pro+ Tester with 640 Test Points
    P/N 3-02048-0 : NX Pro+ Tester with 640 Test Points

    Contact us for configurations above 2048 test points.

     Communications Board Options - Dynalab NX Test Systems

    Communications Board Option - any of the testers shown above may be ordered with a factory installed Communications Board. To order this option, replace the last digit of the part number with 1 (i.e. 3-02048-1).

    Contact us for more information about the Communications Board
    .

     NX Hipot Tester - Dynalab NX Test Systems





  • 50 to 1500VDC Hipot Testing
  • 5Mohm to 1Gohm Insulation Resistance
  • Simple 4-button user interface
  • Tests for continuity and shorts
  • Tests diodes, resistors, capacitors and others
  • Precision resistance measurements
  • Continuous high speed scanning for real time complete status information of harness assembly progress
  • Keyed security access and control
  • Built for rough industrial environments
  • 2 serial ports for connection to printers and scanners
  • Standalone operation
  • Uses a high capacity memory card
  • Specially designed for low point-count applications
  •

    NX Hipot Tester

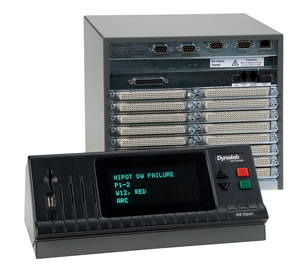

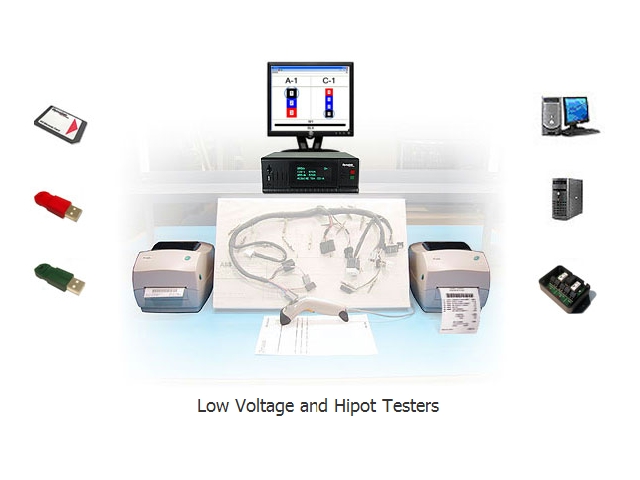

    NX Hipot Testers are fast, accurate, and easy to use. Dynalab designed NX Hipot Testers using the latest available technologies to provide a flexible and adaptable product line that meets the changing needs of wire harness manufacturers. NX Hipot Testers provide all the features of Dynalab's low voltage NX Testers, plus the additional capability of high voltage testing for insulation resistance and dielectric withstand. For test applications that span the range from simple to complex, Dynalab's

    P/N 6-064-0 : NX Hipot Tester with 64 Test Points
    P/N 6-128-0 : NX Hipot Tester with 128 Test Points



     NX Hipot+ Tester - Dynalab NX Test Systems













  • 50 to 1500VDC Hipot Testing
  • 5Mohm to 1Gohm Insulation Resistance
  • Simple 4-button user interface
  • Tests for continuity and shorts
  • Tests diodes, resistors, capacitors and others
  • Precision resistance measurements
  • Continuous high speed scanning for real time complete status information of harness assembly progress
  • Keyed security access and control
  • Built for rough industrial environments
  • 2 serial ports for connection to printers and scanners
  • Standalone operation
  • Uses a high capacity memory card
  • Specially designed for low point-count applications
  •

    NX Hipot+ Tester

    NX Hipot Testers are fast, accurate, and easy to use. Dynalab designed NX Hipot Testers using the latest available technologies to provide a flexible and adaptable product line that meets the changing needs of wire harness manufacturers. NX Hipot Testers provide all the features of Dynalab's low voltage NX Testers, plus the additional capability of high voltage testing for insulation resistance and dielectric withstand. For test applications that span the range from simple to complex, Dynalab's NX Hipot Testers offer more features than the competition at a lower price.


    P/N 7-0256-0 : NX Hipot+ Tester with 256 Test Points
    P/N 7-0512-0 : NX Hipot+ Tester with 512 Test Points
    P/N 7-0768-0 : NX Hipot+ Tester with 768 Test Points
    P/N 7-1024-0 : NX Hipot+ Tester with 1024 Test Points



     NX View - Dynalab NX Test Systems



    • Displays information from NX Tester on PC’s monitor
    • Graphical representation of connectors
    • No keyboard or mouse required
    • PC resident software application
    • Serial connection between PC and NX Tester
    • Shows operator which connectors and cavities are associated with the displayed error
    • Displays instructional information in the form of documents, graphics, movies, etc.
    • Increases operator effectiveness by providing enhanced visual information about error conditions and how to solve them.
    • Optionally allows operators to interact with the NX Tester through PC’s keyboard and mouse



    NX View

    NX View is a software application residing on a PC. Using a serial connection to a NX Tester, NX View displays information from the NX Tester on the PC's monitor. In addition to the normal error and status messages, NX View provides graphical representations of connectors, showing the operator which connectors and cavities are associated with the displayed error.

    On the same screen, NX View can display instructional information that originates from a variety of sources: documentation files, graphics files, movie files - anything that can be displayed in a web browser can be displayed on NX View. This enables operators to be more effective in dealing with specific error conditions or assembly operations. NX View also allows the operator to interact with the NX Tester entirely through the PC's keyboard and mouse.

    P/N 5-5007 : NX View (includes download cable)

    NX View software (NXView_2_EN)

    MS .NET 3.5 Runtime
