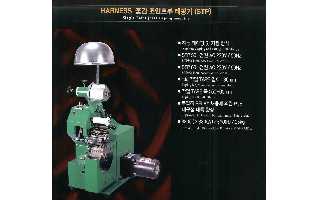

 Single Point Taping Machine (STP)

  • Automatic taping and cutting methodology
  • STP50 : Input power AC220V/50Hz
  • STP60 : Input power AC220V/60Hz
  • Taping length per one operation : 80 mm
  • Taping width : 50 ~ 60 mm
  • Improved PCB circuit by adapting solid state relay
  • Size : 380 (L) x 380 (W) x 510 mm (H)
  • Weight : 35 Kg

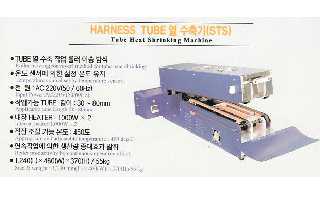

 HST (Heat Shrinking Tube) processing machine (STS)
  • - Roller moving(conveyer) method for heat shrinking tube
  • Temperature control set by temperature sensor
  • Input power : AC220V (50/60Hz)
  • Applicable tube length : 30 ~ 80 mm
  • Internal heater : 1,000Watt x 2
  • Appropriate and adjustable temperature : 450 deg. C
  • Better productivity by continuous operation effect
  • Size & Weight : 1,240mm(L) x 460(W) x 370(H) / 55 Kg

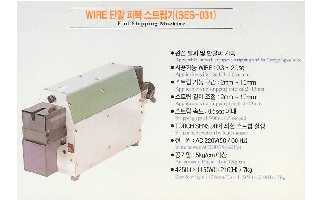

 Wire End stripping machine (SES-031)
  • Applicable for both complete stripping and half stripping of wire.
  • Applicable wire size : 0.3 ~ 2.0 sq. mm
  • Applicable wire stripping interval : 2 ~ 13mm
  • Applicable wire stripping length : 2 ~ 13mm
  • Stripping speed : Within 0.5 second
  • Stripping operation by touch sensor
  • Input power : AC220Vac (50/60Hz)
  • Air pressure : Higher than 5 Kg/cm
  • Size & weight : 425(L)mm x 115(W) x 210(H) & 7 Kg

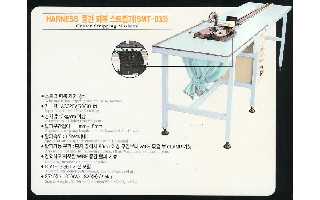

 Center Stripping Machine (SMT-033)
  • Wire insulation stripping and removing method
  • Input power : AC220Vac (50/60Hz)
  • Air pressure : Higher than 5 Kg/cm
  • Applicable stripping length (interval) : Nominal 11 ~ 15mm
  • Speed for stripping and removing : Within 1.5 second
  • Applicable distance for removing : Longer than 90mm from one end of wire
  • Clamping function on bundle of wires
  • Accurate and concise stripping
  • Inclusive blade of 3 sets with product
  • Size & weight : 2,170(L)mm x 600(W) x 820(H) & 95 Kg
 Terminal Paper Handling Device
  • Automatic winding-up function for terminal paper that is loose from terminal reel
  • Consistent performance by speed-reducing motor
  • Convenient elimination function for terminal paper wound up
  • Simply applicable for most crimping machines
  • Input power : AC220Vac (50/60Hz)

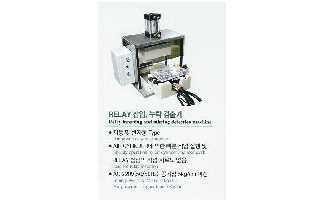

 Relay Inserting and Missing Detection Machine
  • Automatic or semi-automatic
  • Speedy operation by air cylinder and less work
  • Load for relay insertion
  • Input power : AC220Vac (50/60Hz)
  • Air pressure : Higher than 5 Kg/cm

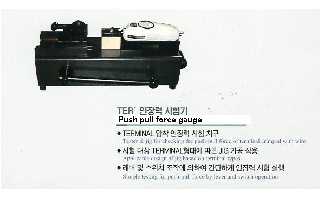

 Push Pull Force Gauge



  • Test jig for checking the push-pull force of terminal crimped with wire
  • Applicable for design of jig based on terminal types
  • Simple testing for push-pull force by lever and switch operation

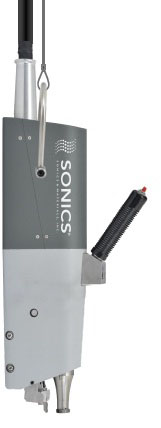

 Ultrasonic metal welding machine











Sonics & Material, Inc. (USA)

  - Ultrasonic metal wire splicing system

  - Ultrasonic metal spot welding machine

  - Ultrasonic battery pack welder.



 Crimping machines and applicators








Artos Engineering Company (USA)

- Full process terminating machines
    General cable (STX Series)-   for download,
    Ignition cable (MTX Series)-   for download and
    Battery cable (MTX-HD Series)-   for download
    Translation in Korean for MTX-   for download
- Bench Top Products-   for download:-
    Cut and strip machines
    Crimping machines
    Wire marking machines
- Etc.

For more information, please visit at www.artosnet.com.





ST Systems Co.

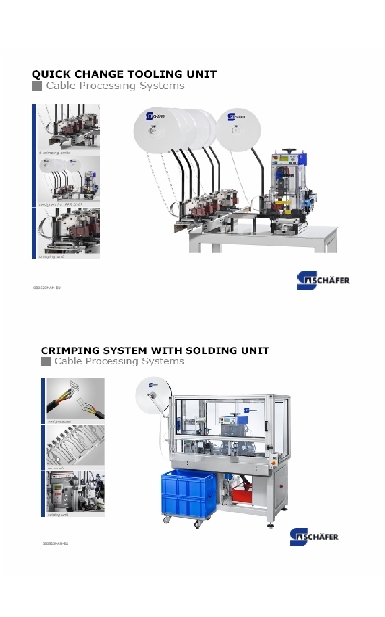

Fully automatic wire processing system New Megomat machine generation



Schaefer Group (Germany)



Crimp Machine
(EPS 2000)
- cross sections up to 6 mm²







Fully automatic wire processing system
(New Megomat machine generation)











- Base Modules.
- Machine Modules.
- Cable Pressing Machines
   (Ex.: Megomat- fully Automatic).
- Quality Control Equipment.
- Toolmaking.









 Lakes Precision's Cutting & Stripping blades




Lake Precision(USA)

- Wire processing perishable tooling (Cutting/Stripping blade)

- The equivalent blades that Lakes Precision can supply for most OEM products.
